Gesight Technology is a trusted manufacturer and supplier specializing in TFT-LCD, Industrial LCD, and OLED display solutions. With TFT-LCD as our core business, we provide a wide range of display panels tailored for industrial applications, repair markets, and consumer electronics.
Our TFT-LCD panels are available with options such as high brightness, wide temperature range, and extended lifespans of up to 50,000 hours, making them ideal for demanding industrial and outdoor environments. We serve industries that require reliability and clarity under challenging conditions.
In addition to TFT-LCDs, our offerings include Micro OLED, Flexible OLED, and customized display solutions such as touch panels, HDMI boards, and converter boards that directly interface with PCs.

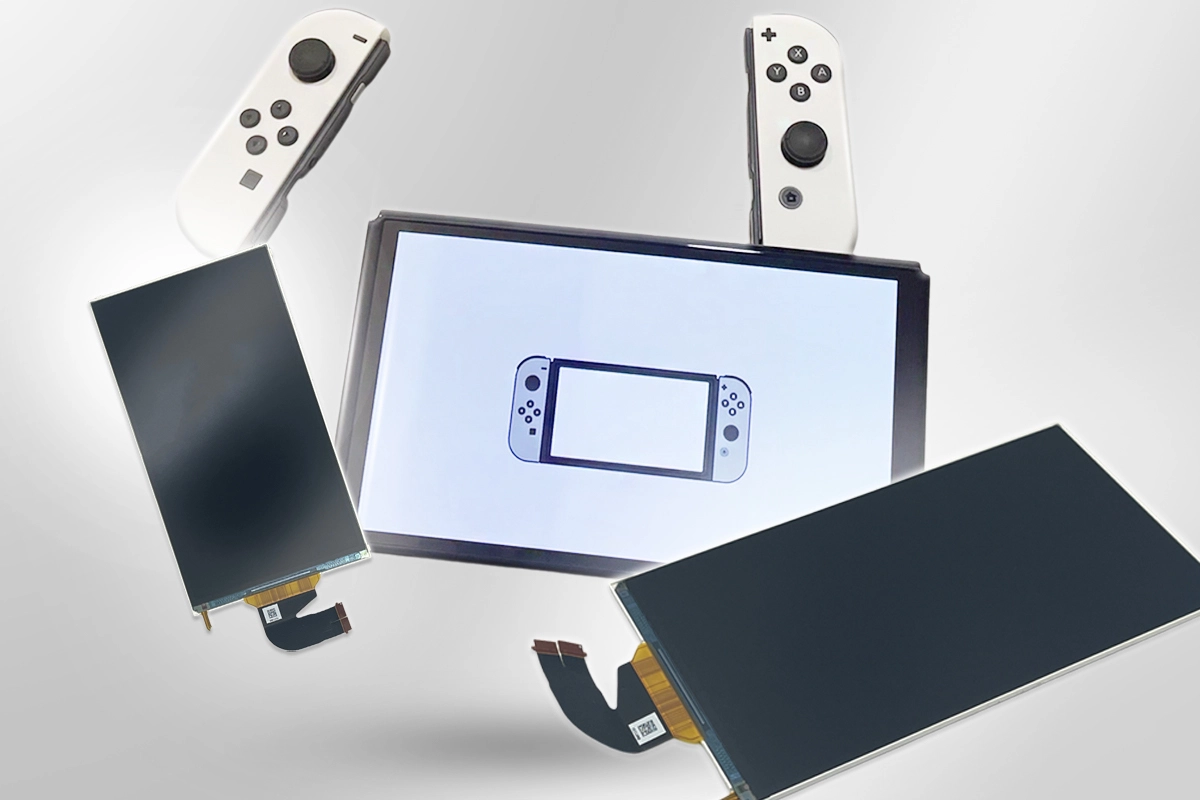

We also support the replacement and repair market, supplying display modules for Nintendo Switch, mobile devices, and other portable electronics.
At Gesight, we combine deep industry experience with flexible production capabilities to meet the evolving needs of global display technology users
Built for Harsh Environments — Industrial LCD Panel Solutions
From factory automation to outdoor kiosks, our
Industrial LCD panels perform flawlessly under extreme conditions.

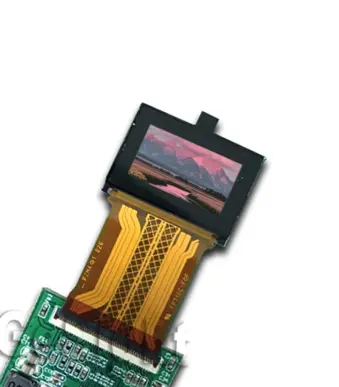

0.71-inch FHD Micro OLED display 3000 nits
| Size |
0.71 inch |
|---|---|
| Pixels |
1920(RGB) × 1080 |
| Interface | |
| Brightness |
3000 cd/m2 (Typ., Mode 4) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active Matrix Color OLED (AMOLED) |
| Color Depth | |
| Refresh Rate |
60 Hz (also supports 50 Hz / 48 Hz modes) |
| Viewing Angle Range |
– |
| Outline L*W*H |
37.32 mm × 21.443 mm × 1.475 mm |
| Active Area L*W |
15.8 mm × 8.99 mm |
| Orientation | |
| Supply Voltage |
VDD1: 1.62–1.98 V (Typ. 1.8 V); VDD1IF: 1.62–1.98 V (Typ. 1.8 V); VDD2: 9.7–10.3 V (Typ. 10.0 V); VCATH: -0.3–0.3 V (Typ. 0 V) |
| Consumption |
Total power (Typ.): 1280 mW @ 3000 cd/m2 (All white, 60 Hz) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
16:9 |
| Connection Type |
FPC, 81-pin (P0.2 mm pitch) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.00819 mm |
| Sunlight Readable |
– |
| Model |
ECX335SN-6 |
| PPI ( pixels per inch ) |
3103 PPI |
| Application |
Head mounted displays; View finders; Small monitors |
2.1 inch TFT-LCD 1600×1600 MIPI For VR
| Size |
2.1inch |
|---|---|
| Pixels |
1600(H) × 1600(V) |
| Interface | |
| Brightness |
Min 360 / Typ 450 cd/m² |
| Manufacturer |
Geisght |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Transmission mode, Normally Black |
| Color Depth | |
| Refresh Rate |
70 / 90 Hz |
| Viewing Angle Range |
CR > 100: Left/Right 40°, Up/Down 40° |
| Outline L*W*H |
41.2(H) × 45.3(V) × 1.66(T) mm |
| Active Area L*W |
38.40 × 38.40 mm |
| Orientation | |
| Supply Voltage |
VDDI: 1.7 / 1.8 / 1.9 V (Min/Typ/Max); AVDD: 5.7 / 6.0 / 6.3 V; AVEE: -6.3 / -6.0 / -5.7 V |
| Consumption |
IVDDI: Typ 79.8 mA / Max 87.7 mA; IAVDD: Typ 8.7 mA / Max 12 mA; IAVEE: Typ -5.4 mA / Max -11 mA; Backlight Power PBL: Typ 468 mW (20% duty) |
| Operating Temperarure |
−10~55°C |
| Storage Temperature |
−40~70°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
Connector: Kyocera 145863050024829+ |
| IC package |
– |
| Pixel Pitch |
8(H) × 24(V) μm |
| Sunlight Readable |
– |
| Model |
VS021XRM-NW0-DKP0 |
| PPI ( pixels per inch ) |
1058 |
2.45 Inch TFT LCD Display High Brightness Wide Viewing Angle
| Size |
2.45" (Diagonal) |
|---|---|
| Pixels |
240× 432 |
| Interface | |
| Brightness |
450 ~ 500 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
ECB, Normally White |
| Color Depth | |
| Refresh Rate |
30 fps (typical at 240 Mbps MIPI) |
| Viewing Angle Range |
≥50° each direction (CR≥10) |
| Outline L*W*H |
31.82 × 33.72 × 1.242 mm |
| Active Area L*W |
30.24 × 54.432 mm |
| Orientation | |
| Supply Voltage |
Logic: 1.8 V, Analog: 3.0 V |
| Consumption |
Backlight: ~252 mW, MIPI logic: up to 40 mW |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Bezel Area (mm) |
(Not explicitly listed; approx. outline – active area margins) |
| Aspect Ratio |
9:16 |
| Connection Type |
FPC (flex cable) |
| IC package |
COG (Chip on Glass) |
| Touch Panel | |
| Pixel Pitch |
0.042 × 0.126 mm |
| Sunlight Readable |
Partial (≥500 cd/m², but not full outdoor readability) |
| Model |
H245QBN02.0 |
| PPI ( pixels per inch ) |
~180 PPI |
| Application |
Handheld devices, portable instruments, smart appliances |

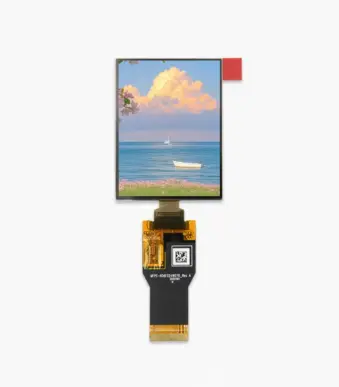

2.4-inch 450×600 AMOLED Display Module
| Size |
2.4 inch |
|---|---|
| Pixels |
450RGB × 600 |
| Interface | , , |
| Brightness |
800 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (Left/Right/Top/Bottom, CR ≥ 10) |
| Outline L*W*H |
38.72 × 51.56 × 0.5 mm |
| Active Area L*W |
36.72 × 48.96 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.7–3.6 V (typ. 3.3 V); VDDIO: 1.65–3.3 V (typ. 1.8 V); ELVDD: 2.0–6.0 V (typ. 3.6 V); ELVSS: -4.7–-0.4 V (typ. -3.6 V) |
| Consumption |
TBD (spec lists power as TBD; IELVSS typ. 72.2 mA in on-mode condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
3:4 |
| Connection Type |
FPC (mating connector: Molex 502598-4591) |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
81.6 um |
| Sunlight Readable |
– |
| Model |
B024JMV-N50-6DP0 |
| PPI ( pixels per inch ) |
311 PPI |
| Application |
Sports camera; Smart home |

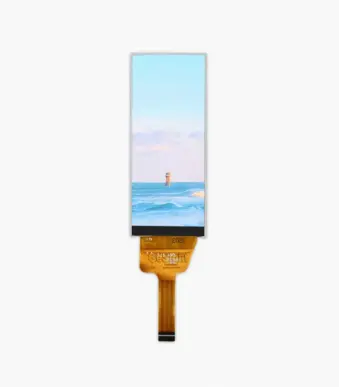

3.16-inch TFT-LCD Display Module 820×320 Parallel RGB
| Size |
3.16 inch |
|---|---|
| Pixels |
820 RGB × 320 |
| Interface | |
| Brightness |
550 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Transmission mode, Normally black |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (CR ≥ 10) for each direction (U/D/L/R) |
| Outline L*W*H |
76.6 × 31.2 × 2.4 mm |
| Active Area L*W |
65.65 × 26.4 mm |
| Supply Voltage |
VCI: 2.8–3.6 V (typ. 3.3 V); IOVCC: 1.65–3.3 V (typ. 1.8 V) |
| Consumption |
Idd: 40 mA (typ.) |
| Operating Temperarure |
-20 to 70 °C |
| Storage Temperature |
-30 to 80 °C |
| Bezel Area (mm) |
5.475 mm (left/right), 2.4 mm (top/bottom) |
| Aspect Ratio |
820:320 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
0.0825 × 0.0285 mm |
| Sunlight Readable |
– |
| Model |
PL0316IV0-SV1-RGB |
| PPI ( pixels per inch ) |
278.6 PPI (≈279 PPI) |
| Application |
Virtual Reality Device；Augmented Reality Device |

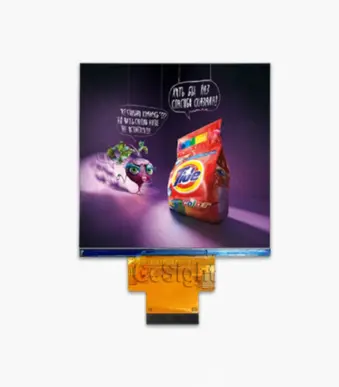

4.0-inch Square TFT-LCD Display Module 480×480 SPI+RGB
| Size |
4.0inch |
|---|---|
| Pixels |
480(RGB) × 480 |
| Interface | , |
| Brightness |
420 min / 450 typ cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (T) / 80° (B) / 80° (L) / 80° (R), CR ≥ 10 |
| Outline L*W*H |
84.3 * 84.3 * 3.2 mm |
| Active Area L*W |
71.86 * 70.18 mm |
| Supply Voltage |
VDD = 2.8 min / 3.3 typ / 3.6 max V |
| Consumption |
IDD = 50 mA max (VDD = 2.8 V, Ta = 25°C); Backlight IF = 40 typ / 45 max mA, VF = 12.8 V (typ) |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
0.5 PITCH connector |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
PL040WQI-H401-R4018 |
| PPI ( pixels per inch ) |
– |
| Application |
– |
5.1-inch Flexible/Bendable OLED Display 720×1520 MIPI DSI
| Size |
5.1 inch |
|---|---|
| Pixels |
720 × 1520 |
| Interface | |
| Brightness |
390 cd/m² (typ, with CG, center); 886 cd/m² (typ, without CG, center) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
Active matrix AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left: 80° (typ) @ CR ≥ 10 (min 75°) |
| Outline L*W*H |
70.78 × 151.31 × 1.343 mm (module outline × total thickness) |
| Active Area L*W |
55.404 × 116.964 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.62–1.98 V; VCI: 2.60–3.60 V; ELVDD: 4.40–4.80 V; ELVSS: −5.00 to −1.40 V; VCC (TSP): 2.7–3.6 V; AVDD: 5.40–7.60 V |
| Consumption |
Display (Full White, 886 nit w/o CG): VCI 3.5 mA (typ), VDDIO 22.0 mA (typ), AVDD 13.5 mA (typ), Panel EL 147 mA (typ); Touch power: Active 49.5 mW, Standby 4.29 mW, Sleep 409 µW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Left/Right 1.10 mm each, Top/Bottom 1.80 mm each |
| Aspect Ratio |
19:9 |
| Connection Type |
Board-to-board connector (Recommended: AXE640124); Touch connector type: FOF |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
76.95 × 76.95 µm |
| Sunlight Readable |
– |
| Model |
BF051FBM-AK0- |
| PPI ( pixels per inch ) |
329.8 PPI |
| Application |
Smart Mobile Phone |

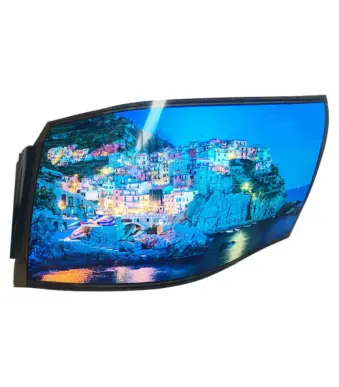

5.99-inch Flexible/Bendable OLED Display 1080×2160 MIPI DSI
| Size |
5.99 inch |
|---|---|
| Pixels |
1080 × 2160 |
| Interface | |
| Brightness |
390 cd/m² (typ, Normal / W L255); 351 min, 429 max |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
Color active matrix AMOLED module (LTPS TFT) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left, CR ≥ 10: 80° (typ), 75° (min) |
| Outline L*W*H |
71.35 × 150.42 mm; Total thickness: 1.416 mm |
| Active Area L*W |
68.04 × 136.08 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.60–3.60 V (typ 3.00 V); VDDIO: 1.62–1.98 V (typ 1.80 V); AVDD: 5.40–7.70 V (typ 6.80 V); ELVDD: 4.40–4.80 V (typ 4.60 V); ELVSS: -5.00 to -1.40 V (typ -2.40 V); TSP VCC: 2.7–3.6 V |
| Consumption |
VCI 2.0 mA typ; VDDIO 30 mA typ; AVDD 20 mA typ; Panel EL 220 mA typ. Display sleep-in: VCI 0.1 mA typ; VDDIO 1.5 mA typ. Touch power: Active 82 mW; Standby 33 mW; Sleep 165 µW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
18:9 |
| Connection Type |
Main FPC, B-to-B contact pads; recommended connector: 24-5857-048 |
| IC package |
GT9286-BGA |
| Touch Panel | |
| Pixel Pitch |
63 µm |
| Sunlight Readable |
– |
| Model |
BO599FF2KM |
| PPI ( pixels per inch ) |
403 ppi |
| Application |
Smart Mobile Phone |

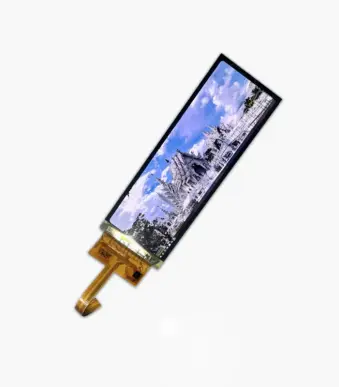

6.52-inch Flexible/Bendable OLED Display 2520×840 MIPI DSI
| Size |
6.52 inch |
|---|---|
| Pixels |
2520 × 840 (SPR) |
| Interface | |
| Brightness |
430 nits (typ, normal mode); 700 nits (typ, HBM mode) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz / 90 Hz |
| Viewing Angle Range |
Full viewing angle; detailed angles TBD (Top/Bottom/Right/Left, CR > 10) |
| Outline L*W*H |
159.472 × 54.379 × 1.0 mm (H max; outline is “MOD W/O CG”) |
| Active Area L*W |
157.1976 × 52.3992 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65–1.95 V; VCI: 2.65–4.8 V; AVDD: 6.0–8.0 V; DVDD: 1.10–1.23 V; ELVDD: 4.6–5.0 V; ELVSS: -5.4–-1.4 V |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Approx. 0.99 mm (left/right) & 1.14 mm (top/bottom), computed from Outline vs Active Area |
| Aspect Ratio |
27:9 |
| Connection Type |
40-pin connector; connector model: BM035-I40-C08 |
| IC package |
COP (Driver IC location: COP) |
| Touch Panel | |
| Pixel Pitch |
0.06238 mm |
| Sunlight Readable |
– |
| Model |
PO652F2K |
| PPI ( pixels per inch ) |
407.41 PPI |
| Application |
– |
6.67-inch Flexible/Bendable AMOLED Display 1080×2400 MIPI
| Size |
6.67 inch |
|---|---|
| Pixels |
1080 (W) × 2400 (H) |
| Interface | |
| Brightness |
350–700 cd/m² (White) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (Φ=0°/90°/180°/270°) |
| Outline L*W*H |
159.24 × 72.63 × 0.62 mm |
| Active Area L*W |
154.560 × 69.552 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V; ID1 1.8 V; VDD 1.8 V; ELVSS -4.0 to 0 V (typ -3.0 V); DVDD 1.2 V; Touch VCC 3.0–3.5 V |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
L/R total 3.078 mm (≈1.539 mm each), T/B total 4.680 mm (≈2.340 mm each) |
| Aspect Ratio |
9:20 (1080:2400) |
| Connection Type |
FPC + connector |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
TA067FM01 |
| PPI ( pixels per inch ) |
~395 PPI |
| Application |
– |
500+ Brands
View our benefits
Fast Shipping
Carrier information
Ready-made solutions
Track or cancel orders
Secure Payments
Payment methods
Switch Screens LCD/OLED
Game-Ready Replacement Screens
High-quality LCD & OLED screens designed for Nintendo Switch—perfect fit, vivid display, smooth gaming.

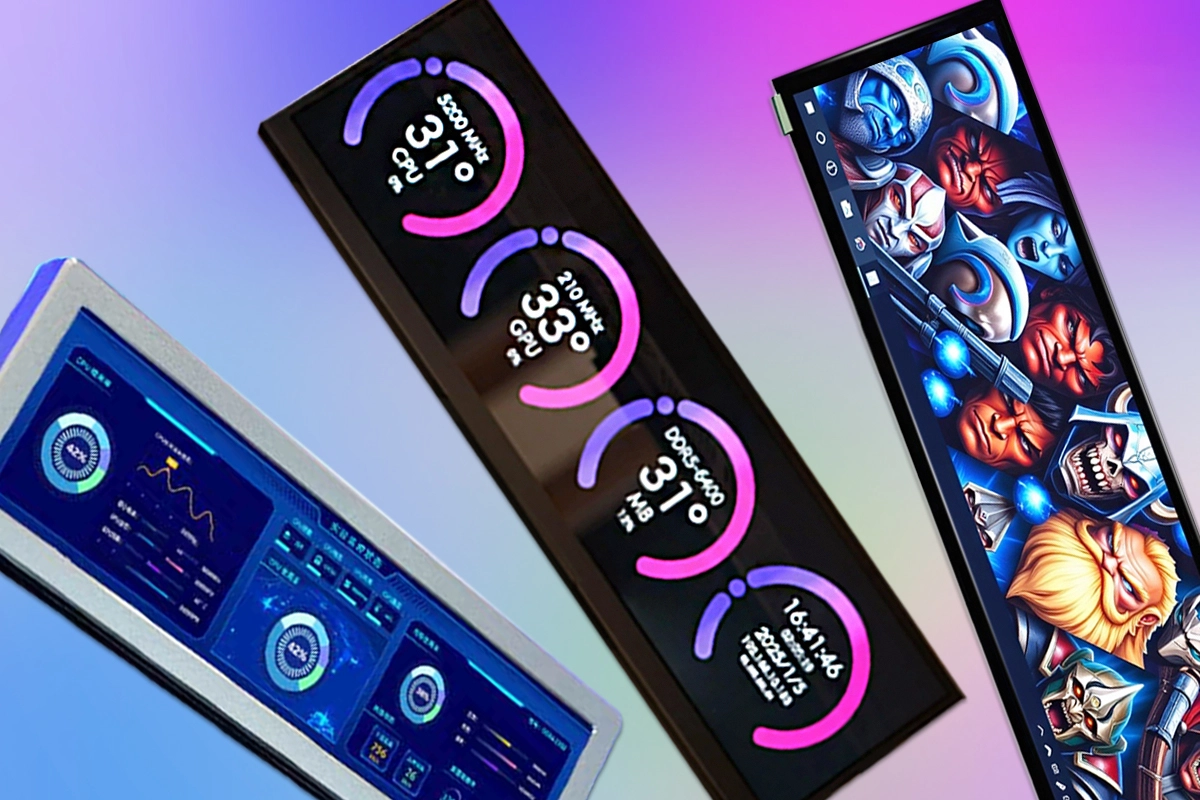

PC Case Screen
Customize Your Rig with a Live Display
Bar LCD for PC cases to show temps, animations, or system stats—personalize your setup in style.
Portable Screen
Productivity On the Go
Lightweight, USB-powered portable monitors for work, entertainment, and multitasking anytime, anywhere.

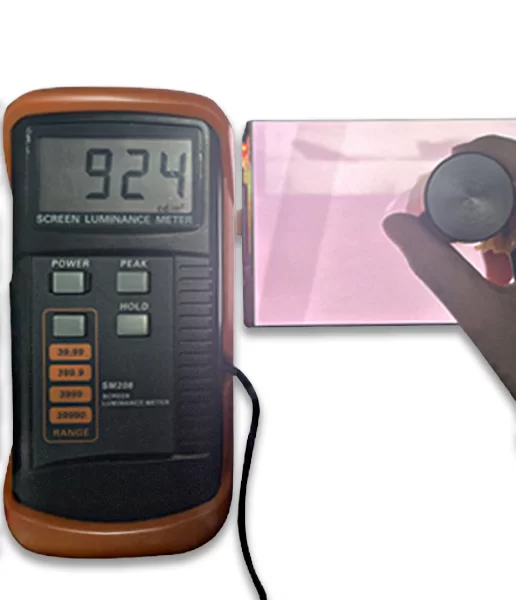

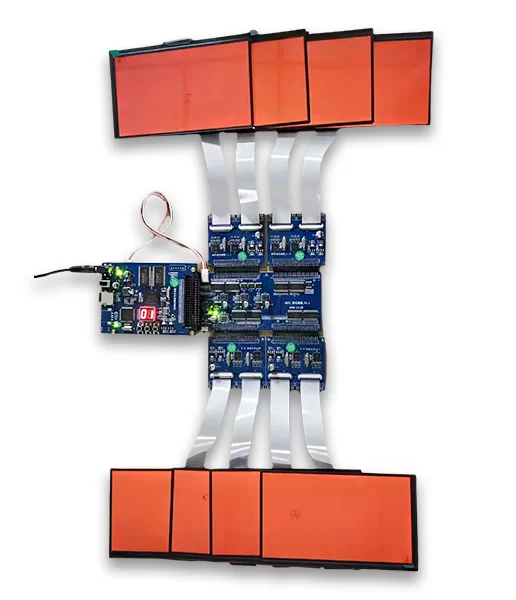

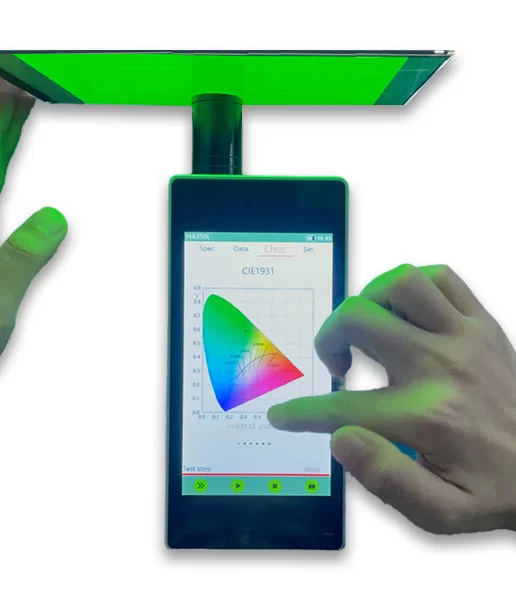

Screen Quality Test
Industries We Serve
Feedback From Clients
The genuine feedback from customers who have purchased the product
tela excelente conforme descrito. muito rápido o envio e muito bem embalado
I forgot to take picture for when it was on but there is no problem at all and as you can see the package is realy well protected. all good 4k 60hz and if you ask they also can remove back light like they did here. they reply realy fast and take care to send you video and picture of it working before shipping
Fantastic seller! I had numerous questions before and affer purchase that they were extremely helpful with. I will certainly be buying from.again for future projects.
The seller is very reliable and has been communicating with me throughout the entire process. Provided me with every bit of information I needed including the data sheet for the display. As you can see in the photo, this is the packaging. The display comes in a protective sleeve, packed between foam sheets and all tightly fit in a plastic container. Unfortunately the display didn't work for me, but this is entirely my fault. I, in my infinite wisdom, thought that I could just swap a more power hungry IPS panel for an OLED without modifying the power delivery of an already existing device. I hope I didn't fry it completely, I'll have to buy a driver board with an HDMI in to see if it works still. Other than that, the seller is reliable and will help you with your inquiries.
This company treated me well. They kept me informed as to the shipping, customs clearing, etc. The package was very good. There was no chance my display was going to be damaged unless run over by a truck. The display itself was of high quality. The circuit board, flex circuits, and the assembly workmanship were all first rate. Of course, being from China there were absolutely no instructions. Fortunately, I just plugged one end of the provided USB-C cable into my laptop and the other end into the display socket. I enabled external display and it popped right up.
Hi there, I’m Barzel
I’ve been in the LCD display business for over 6 years, working with clients across the globe—from East to West.
At Gesight Tech, we specialize in delivering high-quality TFT LCD and OLED solutions tailored for industrial, automotive, and commercial applications. My focus is building long-term partnerships by providing reliable displays, responsive service, and flexible support for every project.
Frequently Asked Questions
Typically the requirements and design phase takes 2-4 weeks. The duration depends a lot on the availability of you and your team, the reaction to reviews and design questions, and how long it takes to make important decisions.
A vel dui a conubia vestibulum class varius vel nunc a gravida ut maecenas quisque a proin condimentum sagittis class at faucibus primis parturient dolor scelerisque himenaeos.
A et ullamcorper vestibulum netus a mauris ac consectetur libero volutpat congue congue turpis a consectetur adipiscing sit.Suspendisse leo fringilla a congue tempus nisi conubia vestibulum a in posuere accumsan.
Sit rhoncus aptent dis scelerisque penatibus a dis tempor accumsan suspendisse mollis a et odio ullamcorper magnis ullamcorper cum ullamcorper duis nulla egestas massa.
Vitae amet nostra est leo dignissim justo sodales et ac a conubia bibendum duis ad justo suspendisse a a tellus cubilia vestibulum a dictumst a duis risus.Sociosqu curae consequat nisl litora a eros est consectetur nulla rhoncus a a id felis praesent.Tempus dui integer a cursus id fames parturient.
